DIAMOND

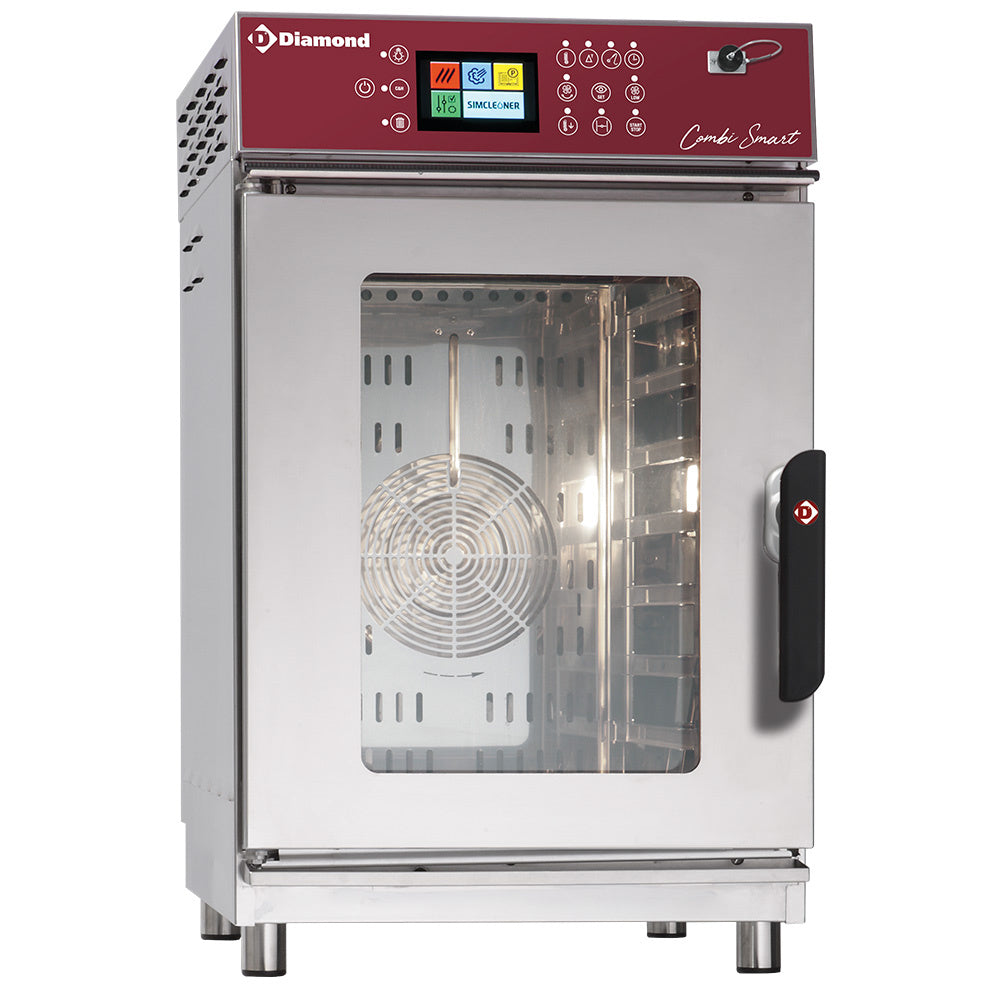

Diamond FVS-711/TS Electric Steam Convection Oven, 7 x 1/1 GN

£8,388.00

ex VAT | £10,065.60 inc VAT
Control panel TOUCH SCREEN 7x GN 1/1 (530x325 mm) Integrated washing system AUTO-CLEANING Standard supplied with 1 grid GN 1/1. 1 Turbine "autorevers" Heating by stainless steel armoured resistance(s), placed behind the deflector and "direct" steam by "nebulisation". Depth loading, GN plates 1/3 - 1/2 - 2/3 - 1/1, removable plate holder structure, 67 mm spacing. Easy after-sales service, ...
Read the full description
  • Control panel TOUCH SCREEN
  • 7x GN 1/1 (530x325 mm)
  • Integrated washing system AUTO-CLEANING
  • Standard supplied with 1 grid GN 1/1.
  • 1 Turbine "autorevers"
  • Heating by stainless steel armoured resistance(s), placed behind the deflector and "direct" steam by "nebulisation".
  • Depth loading, GN plates 1/3 - 1/2 - 2/3 - 1/1, removable plate holder structure, 67 mm spacing.
  • Easy after-sales service, front access.
  • Baking chamber in AISI 304 stainless steel, rounded corners and corners (easy maintenance), deep-drawn bottom with discharge.
  • Integrated condensate collection tray (on the door), directly connected to the discharge.
  • Internal allogenic light.
  • Door with thermal double glazing (reversible), "ventilated" air space between the panes of glass, allowing the cooling of the outer glass, hinged inner glass (easy maintenance).
  • Automatic door closing, ergonomic and athermic handle, gasket (removable) placed in the counter door.
  • Microswitch, for stopping the fan(s) when the door is opened.
  • Safety thermostat.
  • "Releasing valve" for smoke vapour evacuation, adjustable (from the control panel).
  • Dosing pump produces washes and dosing pump rinses.
  • External construction in AISI 430 stainless steel, with adjustable feet.
Product Dimensions W523 x D846 x H877
