DIAMOND

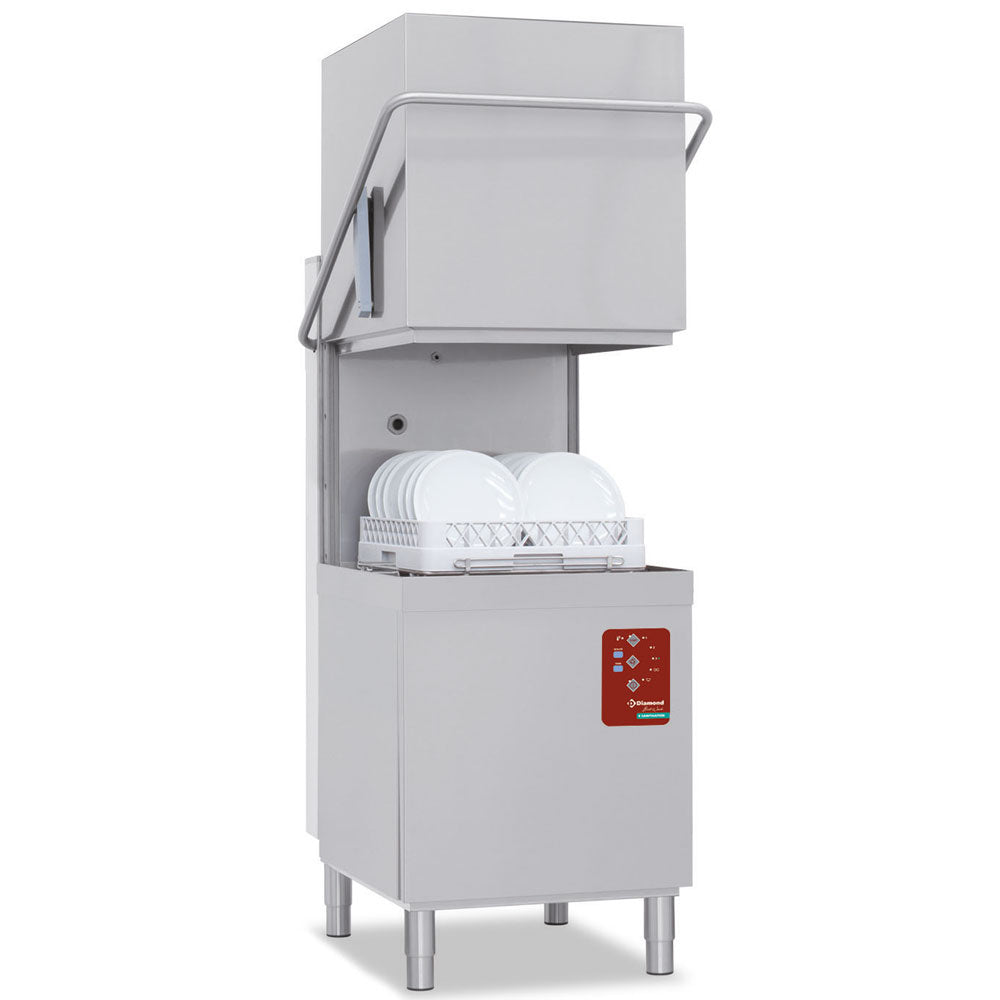

Diamond DXE8/6-AC 500mm Basket Passthrough Hood Dishwasher with Integral Softener, 18 Plate Capacity

£7,100.00

ex VAT | £8,520.00 inc VAT
Built-in continuous water softener (ATTENTION: cold water connection) Height of plates load 450 mm From 30 to 20 baskets/hour, PLD cycle 120'', 180'', continuously and "Sanitisation" 3 phases: wash, unload, rinse Standard discharge pump Standard rinse pump (atmospheric boiler) Made of stainless steel AISI 304. Rotating washing and rinsing arms (upper and lower). Self-cleaning nozzles Comp ...
Read the full description
  • Built-in continuous water softener (ATTENTION: cold water connection)
  • Height of plates load 450 mm
  • From 30 to 20 baskets/hour, PLD cycle 120'', 180'', continuously and "Sanitisation"
  • 3 phases: wash, unload, rinse
  • Standard discharge pump
  • Standard rinse pump (atmospheric boiler)
  • Made of stainless steel AISI 304. Rotating washing and rinsing arms (upper and lower). Self-cleaning nozzles
  • Completely "deep-drawn" tank (15 Lit., 2.1 kW). Integral "Composit" tank filter. External piping to the washing chamber. Patented" pump filter to keep the washing water longer and at the right temperature. High-efficiency washing pump (double flow) guaranteeing significant energy savings. Hood opening and closing device on connecting rods. Control panel, accessible from the front, facilitating after-sales service. Adjustable stainless steel feet (160-220 mm).
  • Automatic water discharge function integrated in the control panel (no need to remove the bung manually). Automatic filling of the tank. Non-return valve. Hot water rinsing (water consumption per cycle 2,6 liters), stainless steel boiler (6 lt - 6 kW). Possibility to regulate the temperature of the tank and the boiler. Micro switch for cycle stop when opening the hood. Safety thermostat. Included: 1 plate basket, 1 generic basket, 1 cup, water connection and discharge pipes
Product Dimensions W724 x D818 x H2010
