DIAMOND

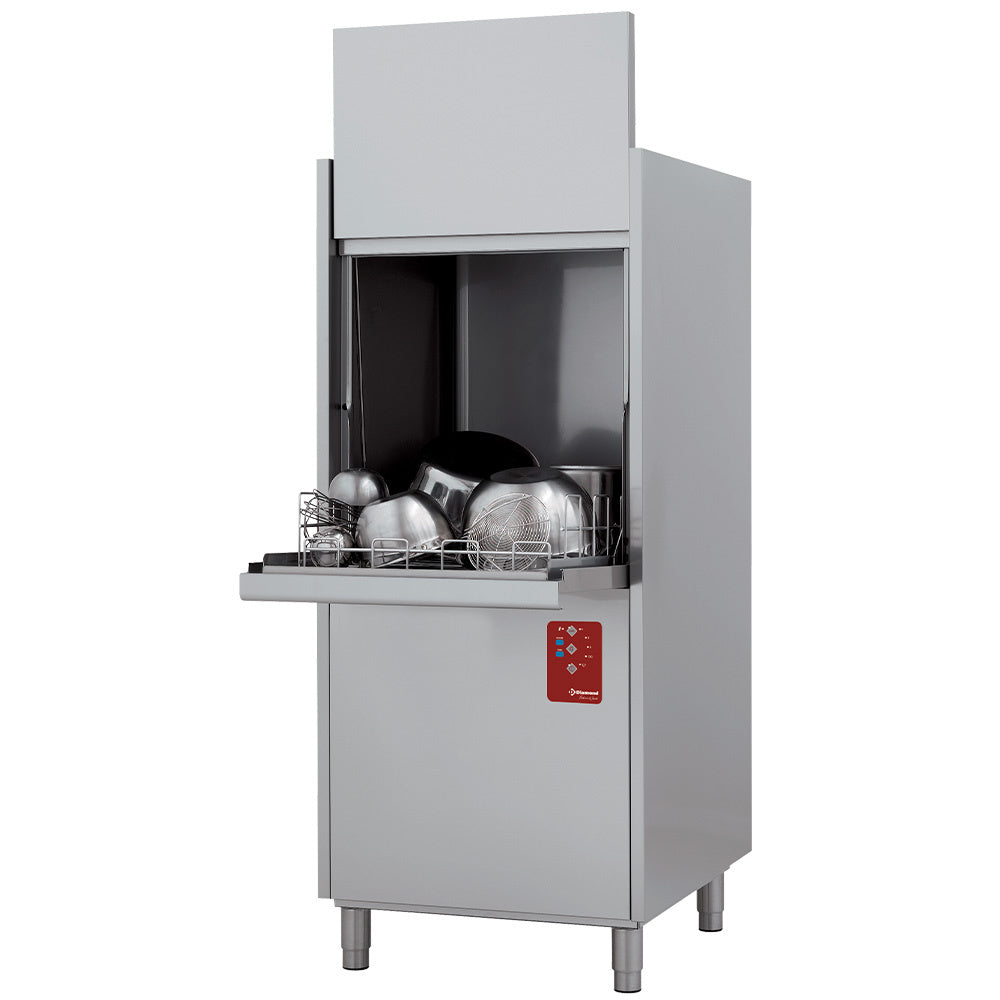

Diamond D701/8P Pot & Utensil with Break Tank

Realisation "double walled" Loading height for trays 650mm CID door (double wall) with automatic closing "soft contact" (partial opening for steam evacuation) Double door guillotine (isolated double wall) and counterbalanced Standard rinsing pump (atmospheric boiler) Cycles 120''- 240'' - 360'' or continuous Rotating washing and rinsing arms Self-cleaning nozzles Deep-drawn walls Adjust ...
Read the full description
Enquire for price
  • Realisation "double walled"
  • Loading height for trays 650mm
  • CID door (double wall) with automatic closing "soft contact" (partial opening for steam evacuation)
  • Double door guillotine (isolated double wall) and counterbalanced
  • Standard rinsing pump (atmospheric boiler)
  • Cycles 120''- 240'' - 360'' or continuous
  • Rotating washing and rinsing arms
  • Self-cleaning nozzles
  • Deep-drawn walls
  • Adjustable stainless steel feet (160-220 mm)
  • Removable control panel
  • USB" port for software update
  • Pump increasing the pressure of the water in the network
  • Automatic filling of the tank
  • Vertical, self-draining and self-cleaning washing pump (600 litres/minute)
  • Non-return valve
  • Hot water rinsing, insulated stainless steel boiler (7-12 Lit., 6kW)
  • Micro switch when the door is opened
  • Safety thermostat
  • Made of AISI 304 stainless steel
  • Included: 1 generic basket
Product Dimensions W720 x D780 x H2030
