DIAMOND

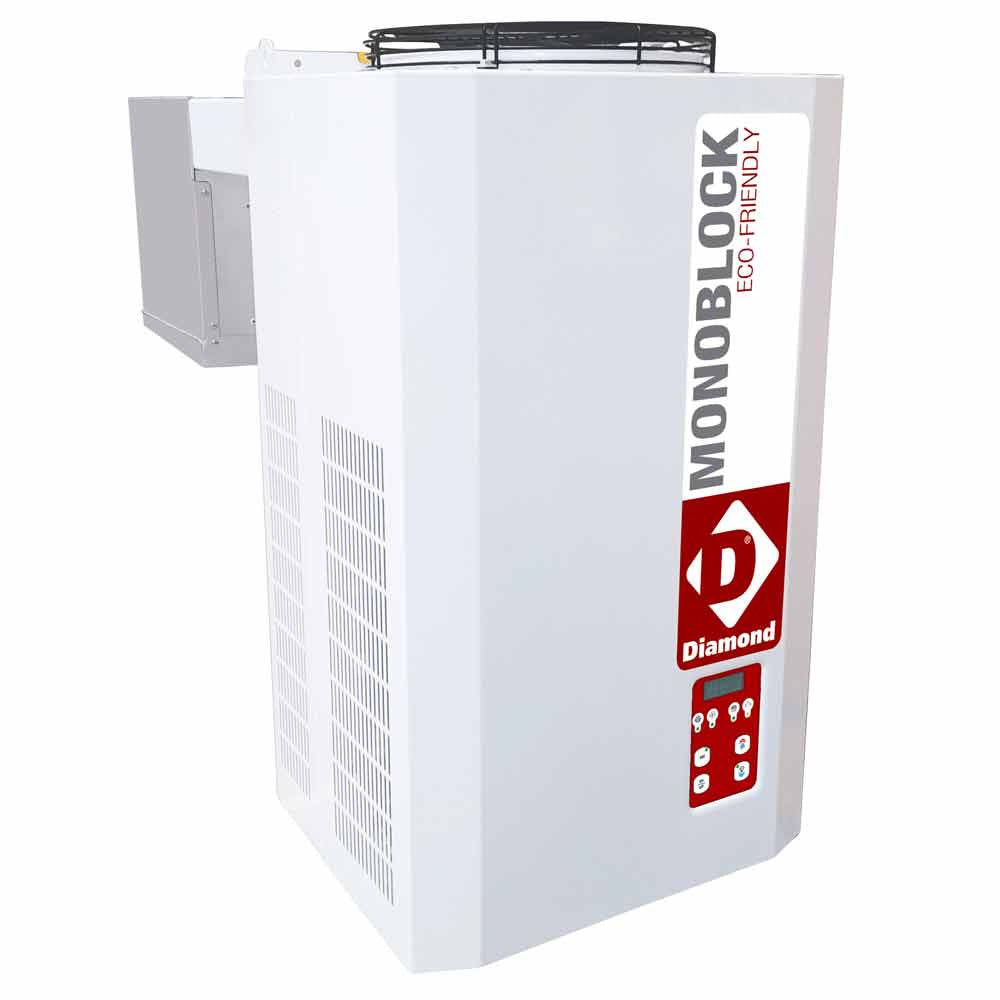

Diamond AN203T-2F Refrigerated Group " Overlapping " T° -15°-25°

£5,544.00

ex VAT | £6,652.80 inc VAT
Cooling capacity 1577 (W/f) for chamber volume 16,3 m³ / 16300 Lit (T° internal -20° C & T° external +32° C). Refrigerant expansion by thermostatic valve.  Supplied with a cable for the connection of the door heater. "Overlapping" refrigeration units. Unit certified in climate class 5 (40°C Temperature - 40% Humidity). All units are supplied as standard with a high pressure switch and K ...
Read the full description
  • Cooling capacity 1577 (W/f) for chamber volume 16,3 m³ / 16300 Lit (T° internal -20° C & T° external +32° C).
  • Refrigerant expansion by thermostatic valve.
  • Supplied with a cable for the connection of the door heater.
  • "Overlapping" refrigeration units.
  • Unit certified in climate class 5 (40°C Temperature - 40% Humidity).
  • All units are supplied as standard with a high pressure switch and KVL valve.
  • Automatic hot gas defrost with self-evaporation and overflow.
  • The evaporator drain pipe is equipped with a resistor to prevent ice formation.
  • Refrigerant gas R452a.
  • Supplied with cables and micro-switch for door and light (Porthole lights supplied as standard).
  • Microprocessor control with touch-sensitive keys.
Product Dimensions W650 x D390 x H814
