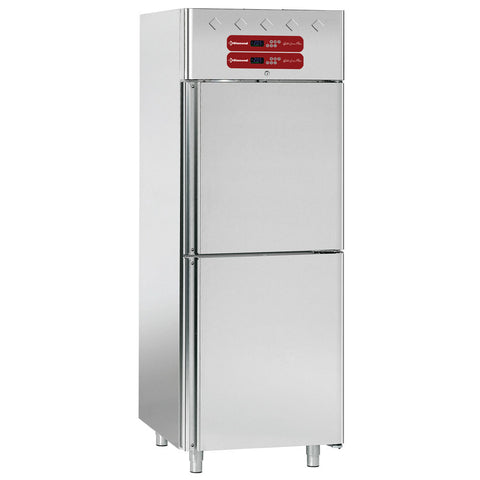

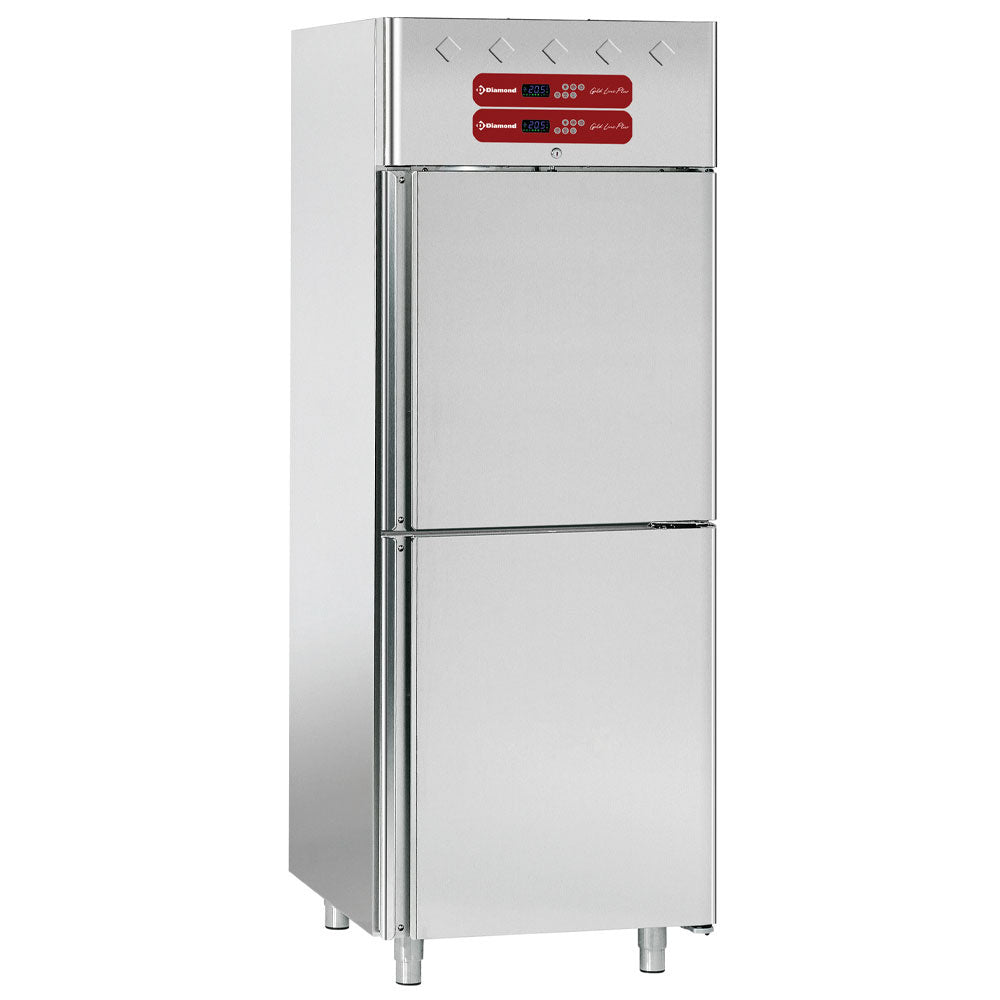

Diamond AF2T/H2-R2 Stainless Steel Refrigerator & Fish Refrigerator, 2 x 350 Liters

2 compressor groups and 2 evaporators, independent. Included: 2 grids GN 2/1 (530x650 mm) + 4 trays GN1/1-100 mm in polycarbonate. Fish refrigerator: evaporator at copper coil, embedded in the walls (3 sides), manual defrost, with water collecting tray, bottom fitted with a draining tap. 4 adjustable stainless steel feet. Refrigerant Gas R290. Interior and exterior made of stainless steel ( ...
Read the full description
Enquire for price
  • 2 compressor groups and 2 evaporators, independent.
  • Included: 2 grids GN 2/1 (530x650 mm) + 4 trays GN1/1-100 mm in polycarbonate.
  • Fish refrigerator: evaporator at copper coil, embedded in the walls (3 sides), manual defrost, with water collecting tray, bottom fitted with a draining tap.
  • 4 adjustable stainless steel feet.
  • Refrigerant Gas R290.
  • Interior and exterior made of stainless steel (food grade) AISI 304 (rear galvanized steel), monocoque frame
  • Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
  • Doors with ergonomic (not protruding) and reversible handle, closing by "triple chamber" and magnetic seal (easy replacement, without tools), hinges with 100° stop, closing with automatic return (audible and visual alarm device for "open door")
  • Microswitch device, allowing the evaporator fan to stop when the door is opened
  • Standard with key lock
  • Upper panel for accessibility to the compressor unit, hinged, easy inspection
  • Tropicalized compressor unit (ambient temperature +43°), ventilated condenser.
  • Ventilated evaporator (oversized), treated against salt and food acids "coating", completely hidden (not visible)
  • Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
  • Internal lighting, with switch
  • Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
  • Automatic condensate evaporation (hot gas)
  • CFC-free polyurethane insulation (85 mm = super-insulated)
  • The device is built in compliance with all applicable standards (CE).
