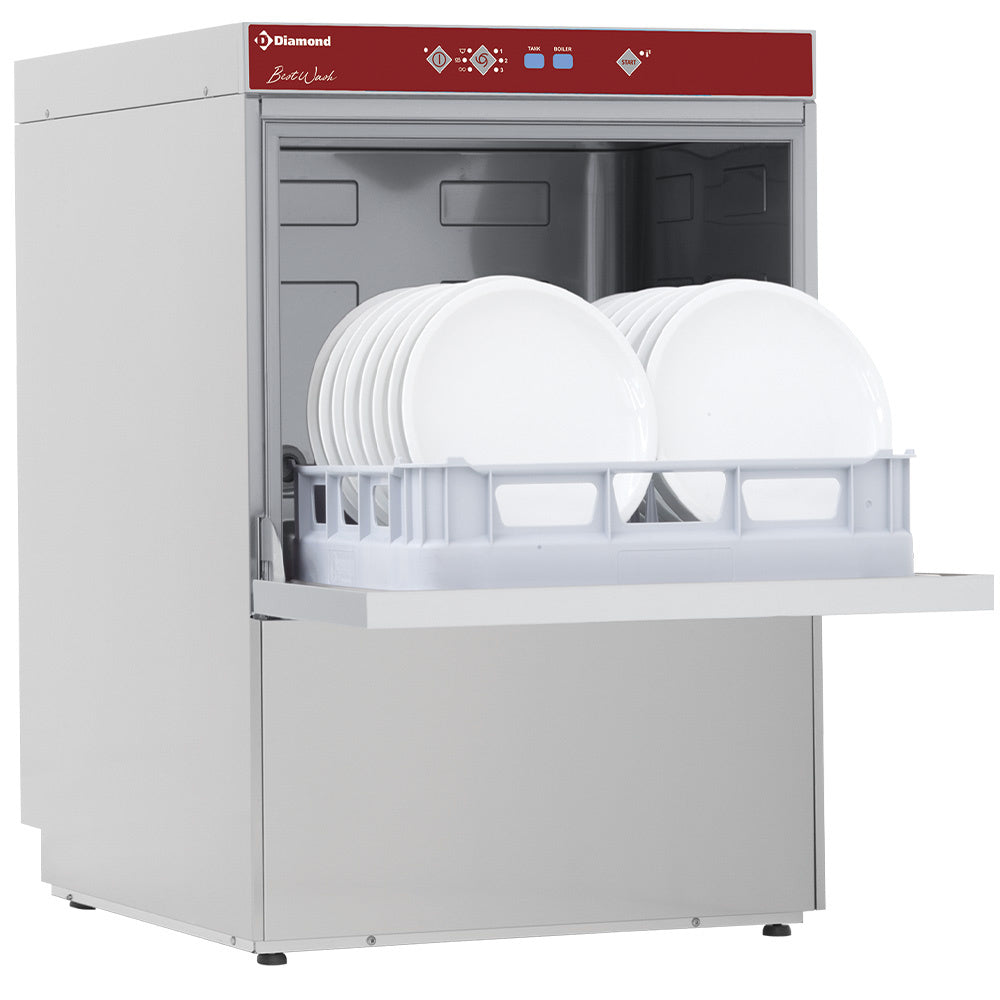

Diamond 04D/6S Dishwasher and Pot & Utensil Washer, 24 Baskets/hour
Diamond 04D/6S Dishwasher and Pot & Utensil Washer, 24 Baskets/hour

DIAMOND

Diamond 04D/6S Dishwasher and Pot & Utensil Washer, 24 Baskets/hour

Low version, installation option under sinks and cupboards etc.... "Double-walled" Version With anti-pollution device, AB type (Break Tank), including rinse pump (atmospheric boiler) Load height 405 mm Plate height 380 mm 3 stages: washing, discharge, rinse Drain pump, standard Rinse pump, standard (atmospheric boiler) Double-walled version completely in stainless steel AISI 304 From 60 ...
Read the full description
Enquire for price
  • Low version, installation option under sinks and cupboards etc....
  • "Double-walled" Version
  • With anti-pollution device, AB type (Break Tank), including rinse pump (atmospheric boiler)
  • Load height 405 mm
  • Plate height 380 mm
  • 3 stages: washing, discharge, rinse
  • Drain pump, standard
  • Rinse pump, standard (atmospheric boiler)
  • Double-walled version completely in stainless steel AISI 304
  • From 60 till 24 baskets/hour, cycles 60'' - 120'' - 150" or continuous - Rotating wash and rinse arms (upper and lower), lower in stainless steel - Self-cleaning jets -Tank (23 Lt., 2,1 kW) with rounded edges, "stamped" bottom - Stamped basket runners, no roughness and no limescale
  • "Integral" tank filter in "cast" stainless steel -"patented" filter pump allows to keep the wash water cleaner and at the right temperature
  • "Stamped" double walled door, "removable" gasket, stamped handle
  • Removable control panel, easy after-sales-service.
  • Automatic discharge function of the water tank, integrated in control panel (not necessary anymore to remove manually the plug)
  • Automatic filling of the tank
  • Check valve - Hot water rinse (2,5 Lt
  • water consumption per cycle), stainless steel boiler (with pressure, 7 Lit., 6/8 kW) - Possibility of regulation of tank and boiler temperature - Washing pump (double flux), which guarantees important energy savings, with "Soft start" device - Micro switch, when the door opens
  • Safety thermostat
  • Standard : 2 baskets, 1 basket for plates 500x600, 1 basket 500x500, 1 cup NB inclined structure, for desks (on request)
